Columbo FAP 30, PIV, FBI-Certified, Single-Print Scanner

Available on backorder

Please enable JavaScript in your browser to complete this form.
Name
SKU: DS-CL2100M-000 Categories: , Brand:

The Most Accurate Solution For Unattended Verification

The Columbo is the world’s smallest, lightest, and fastest FBI PIV FAP 30 certified single-fingerprint scanners, producing the highest quality fingerprint images in a small and lightweight form factor. The Columbo is provided with a full featured SDK to enable effective integration into applications requiring certified quality images, meeting the needs for enrollment and verification applications common in international standards based programs. The Columbo is incredibly accurate and much more difficult to spoof than run-of-the-mill competitors, providing a new alternative for unattended verification applications.

Features & Benefits

Faster

  • Rapid, dry finger capture
  • No need to clean latent prints in high-volume
  • Easy integration via single SDK for all Integrated Biometrics
  • FBI-certified products

Better

  • Unaffected by extreme temperatures, direct sunlight, or bright artificial lights
  • Compact, lightweight, and rugged
  • Rejects common spoofing attacks
  • Emits no bright lights during scans
  • Meets or exceeds US military durability specifications

Smarter

  • Competitive pricing
  • Extremely low power consumption
  • Eliminates consumables (silicone membranes or cleaning tape)
  • Lower maintenance costs

Click here to download the product Specsheet(PDF)

Additional information

OS Support & System Requirements

OS Support
Windows Desktop Editions 10, 11, Linux Kernel 4.0 or newer
• Ubuntu 18.04LTS or newer
• Debian 10, 11, or newer
Android 10, 11, 12 or newer
CPU:
• x86 and x64, 2.0GHz or higher ARM, 1.0 GHz or higher
Memory
• 512MB or higher

Images & Capture

Sensor Type

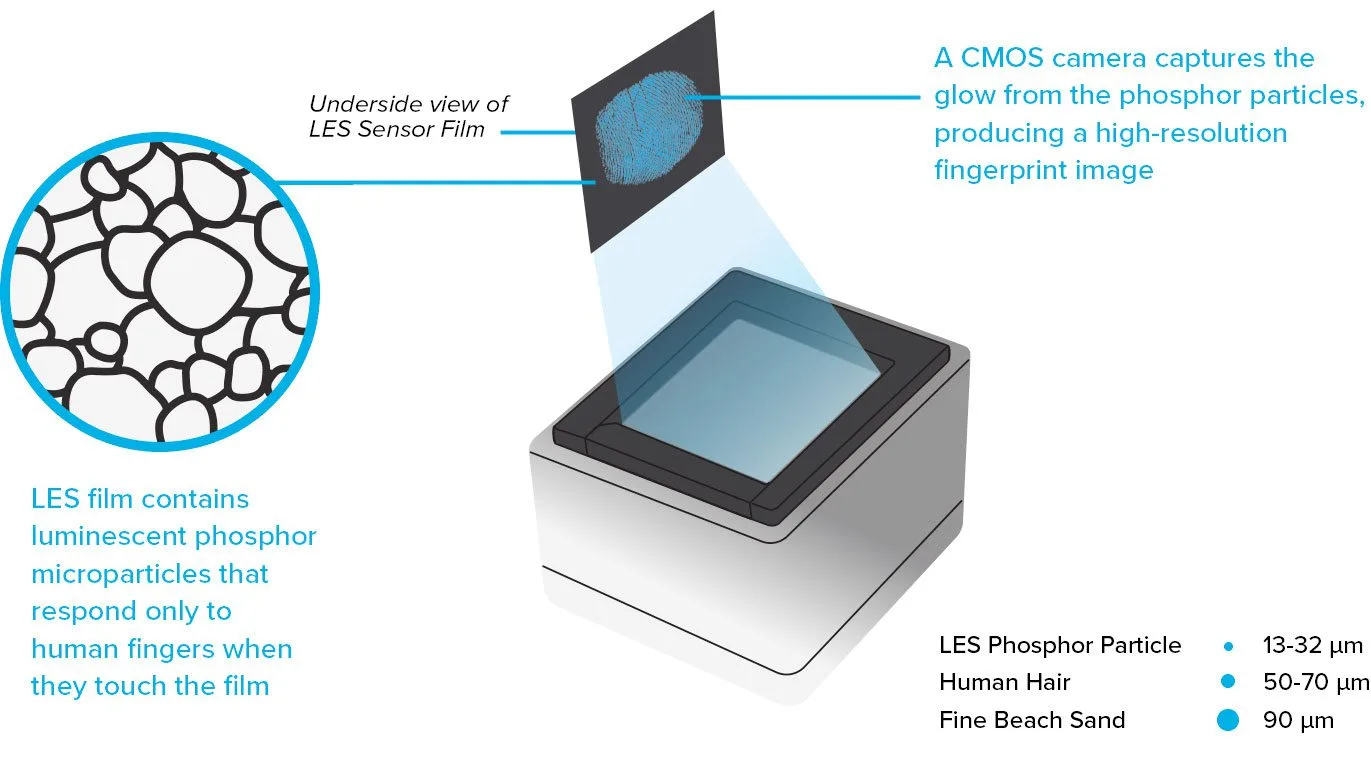

• LES
Camera
• CMOS
Resolution
• 500 ppi
Image Size
• 400 x 500 pixels
Supported Image Formats
• RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)
API Interface
• Capture single finger, multi-device / multi-thread support

Power & Connectors

Interface
• USB 2.0 and Molex
Power Source
• USB Host

USB Voltage Level
4.4V to 5.25V

Ingress Protection / Water / Dust

IP65 Sealed bezel to scanning surface
