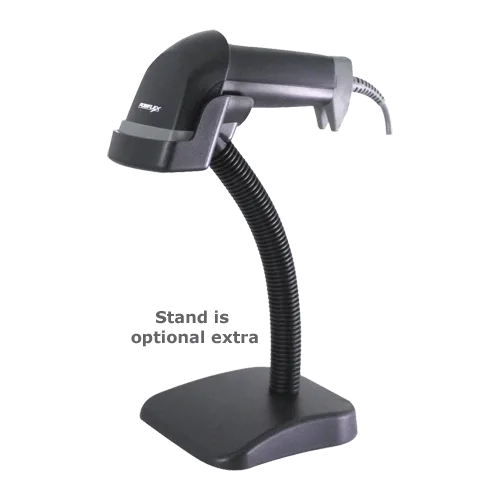

Posiflex CD-3200 2D Imager Scanner USB Black, no stand
Roll over image to zoom in
$259.00
CD-3200 2D Imager Scanner USB Black, no stand
CD-3200 2D Imager Scanner USB Black, no stand
Features:
- Handy 2D image scanner
- Light source: 2 x red LED
- Scan Method: CMOS array sensor
- Resolution: 752 (H) x 480 (V) pixels
- Depth of Field: 40~120 mm (15 mils QR code)
- Scan Angle: Horizontal – 41°, Vertical – 26°
- Scan Rate: Up to 60 fps
- Scans most common 1D, 2D and Postal Codes
- USB or Serial Interface
Additional information
| Scan Engine | CMOS array sensor |
|---|---|
| Light Source | 2 x Visible Red LED |
| Scan Pattern | Resolution: 752 (H) x 480 (V) pixels |
| Scan Rate | Up to 60 f/sec |
| Resolution | Typical 5mils |
| Depth of field | 40~120 mm (15 mils QR code) |
| Symbologies supported | 1D Barcode Support: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBNISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Programming Method | Bar code command |
| Indicators/Controls | LED indication, Programmable Beeper |
| Communication Type | Corded |
| Interfaces | USB HID, USB Virtual COM, RS232 |
| Drop Specification | Withstands multiple drops from 1.5m onto concrete |
