Dual-Frequency RFID Temperature Monitoring & Logging Label | 90×125 mm
Dual-Frequency RFID Temperature Monitoring & Logging Label | 90×125 mm - Image 2

Dual-Frequency RFID Temperature Monitoring & Logging Label | 90×125 mm

SKU: DS-AZL-NUHTM-PP-12590

UHF 860-960 MHz, NFC Type 2 | ISO 14443A, RFID Temperature Monitoring & Logging Label

Material: Matte Iaminated PP synthetic paper Label Size: 90×125 mm Antenna Size: 68×80 mm
Operating Frequency: UHF 860-960 MHz;HF 13.56 Communication Protocol: UHF:ISO/IEC 18000-6C, EPC Class 1 Gen…
Data Retention: 10 years User Memory: 0-8k bits(Configurable area size) TID Memory(Unchangeable): 96 bits(UHF)…
Operating Environment: -35°C ~ 50°C Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH…

Dual-Frequency RFID Temperature Monitoring & Logging Label | 90×125 mm

The dual-frequency RFID temperature monitoring and logging label is designed for seamless cold chain management, ideal for vaccines, pharmaceuticals, fresh cold chains, and smart parcel tracking. The label features an integrated battery, allowing for offline, continuous reading and automatic generation of statistical reports. Equipped with both NFC and UHF capabilities, the label ensures efficient inventory management, precise temperature monitoring, and product safety throughout the cold chain, while fully complying with ISO/IEC 14443-A, EPC Class 1 Gen 2, and ISO/IEC 18000-6C standards.

The label features a sensor IC with three interfaces: a contact-based I2C interface, an HF NFC port, and a UHF port. The NFC port allows data reading via NFC-enabled Android or iOS smartphones, while the UHF port supports long-range, high-density reading with a UHF reader. It operates in semi-active mode (battery-powered) or passive mode (powered by the reader’s RF field), with temperature measurements possible in both modes and at both operating frequencies.

Features:

Frequency Band: UHF 860~960 MHz

EPC Memory: 160k bits

TID Memory: 96 bits(UHF)

International Standard:UHF:  ISO/IEC 18000-6C, EPC Class 1 Gen 2

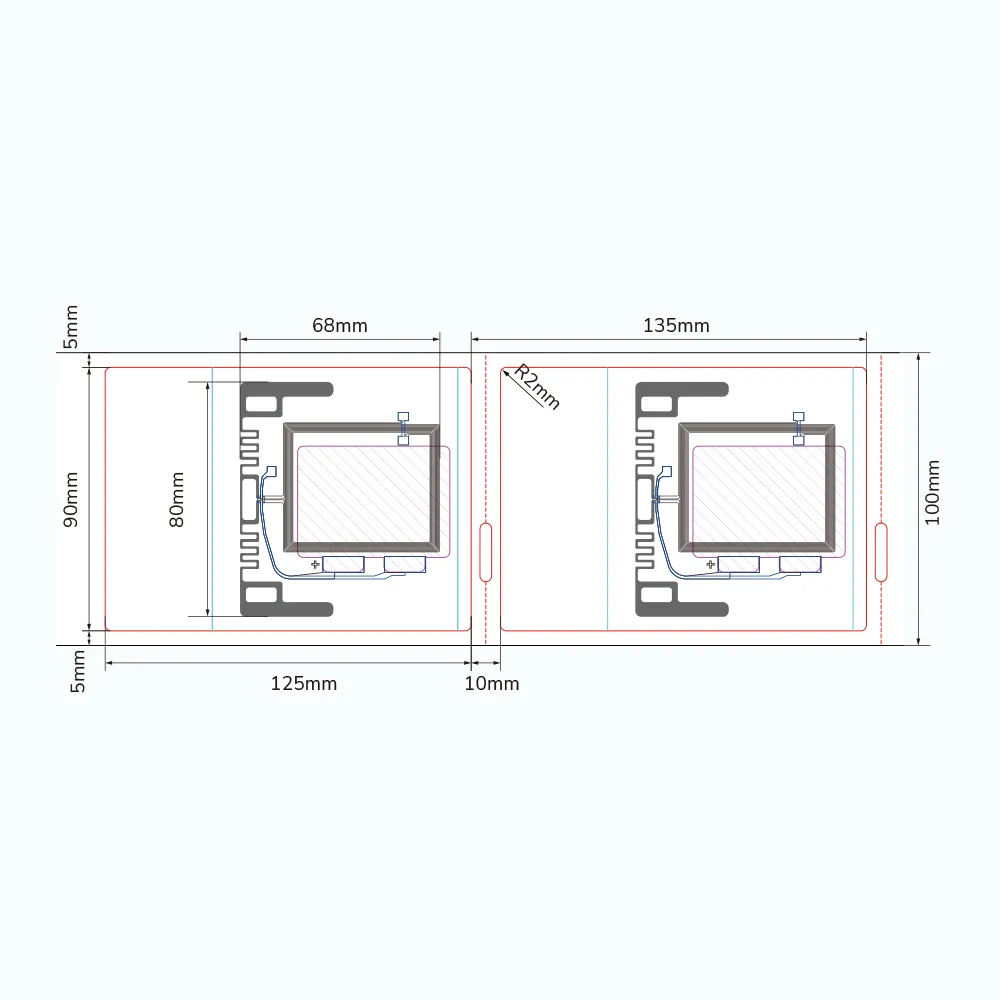

Physical Specifications

Material: Matte Iaminated PP synthetic paper
Label Size: 90×125 mm
Antenna Size: 68×80 mm
Technical Parameters

Operating Frequency: UHF 860-960 MHz;HF 13.56
Communication Protocol:
UHF:ISO/IEC 18000-6C, EPC Class 1 Gen 2, HF: ISO/IEC 14443-A, NFC Forum Type 2
Temperature Measurement Sensitivity: -25 dBm(UHF)
Resonant Capacitance: 23.5 pF(HF)
Battery Information: 1.5 V/10 mAh
Precise Temperature Measurement Range: -35°C~50°C
Temperature Sensor: Semiconductor temperature sensor & ADC
RTC(Powered by the battery): Low power RC oscillator & low power digital counter & timer
RTC Accuracy: ±2%@-20°C~50°C
RTC Measurement Interval: 1~65535 s
Multi-Mode Logging: Normal mode & limit mode
Operating Mode: Semi-active mode powered by the battery or Passive mode powered by a RF field of a reader
Battery Life: Under a duty cycle of 1-hour operation with temperature logging every 5 minuter, supports approximately 50 operating cycles(typical).Affected by ambient temperature, read frequency, and usage profile.
Chip Characteristics

Data Retention: 10 years
User Memory: 0-8k bits(Configurable area size)
TID Memory(Unchangeable): 96 bits(UHF)
UID Memory(Unchangeable): 7 bytes(HF)
EPC Memory: 160k bits
Kill & Access Password: 32 bits
Write Endurance: 200,000 times
Temperature Data is Stored in NDEF Format: -19.5 dBm
Real-time of Scheduled(logging)Environmental Temperature Measurement and Recording: -16.7 dBm
Temperature Logging/Measurement: Support
Temperature Logging/Measurement Interval is Configurable: Support
Additional Information

Operating Environment:
-35°C ~ 50°C
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Inlays with black-dot marks are bad ones, do not use.
Packaging

Packing Format: Stacked in folds, packed in box
Packing Quantity: 100 pcs/box, per box 0.63 kg
