Zebra

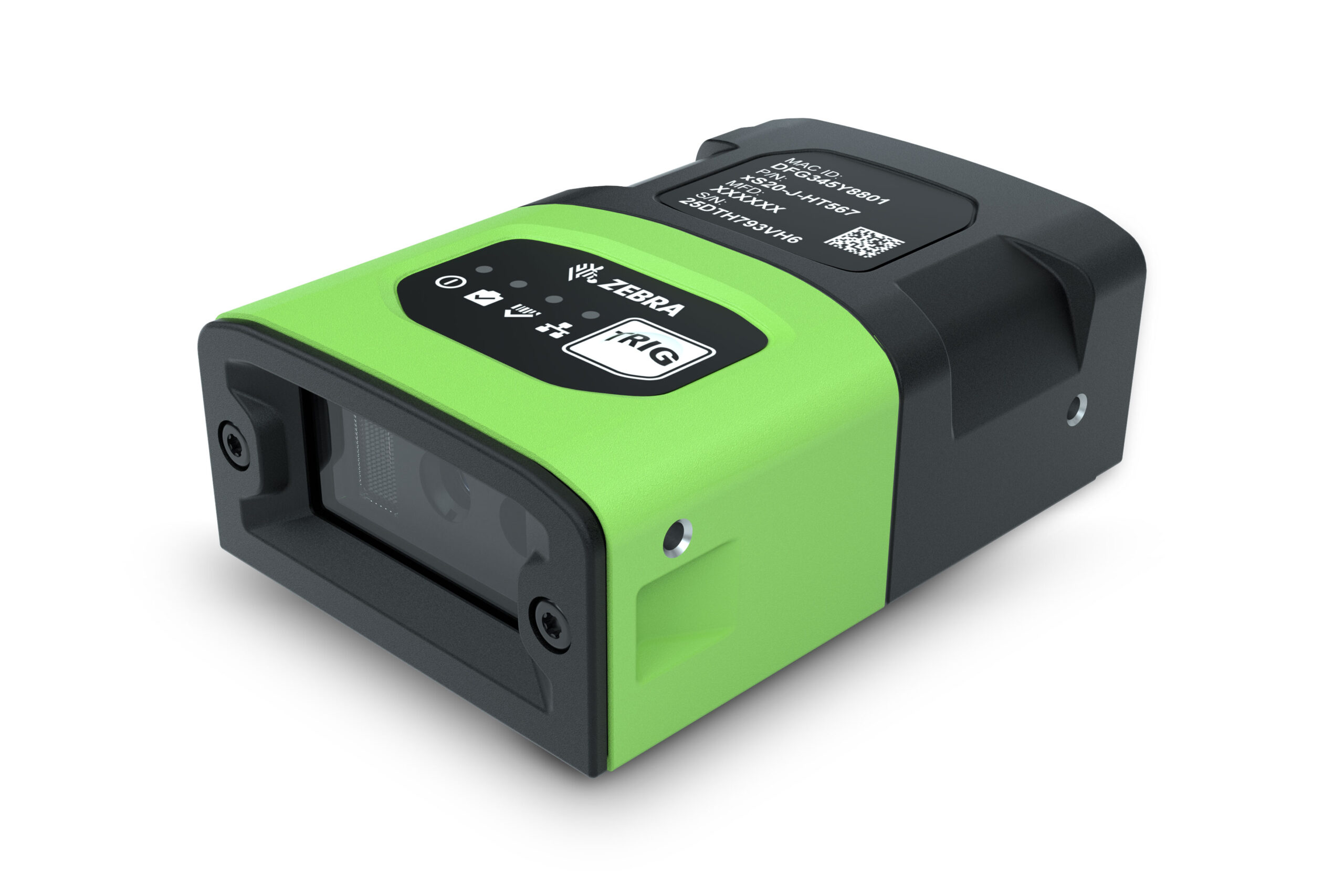

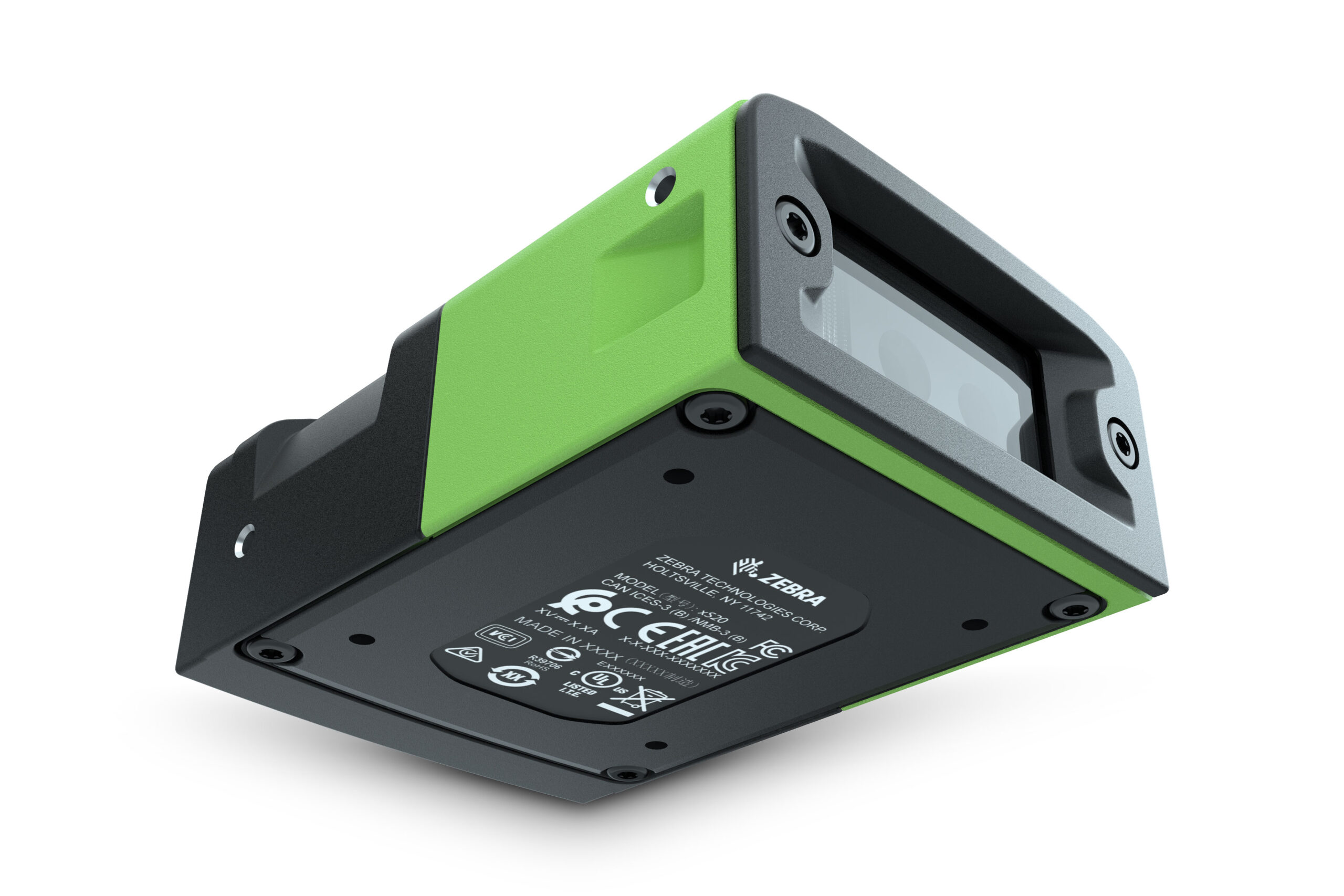

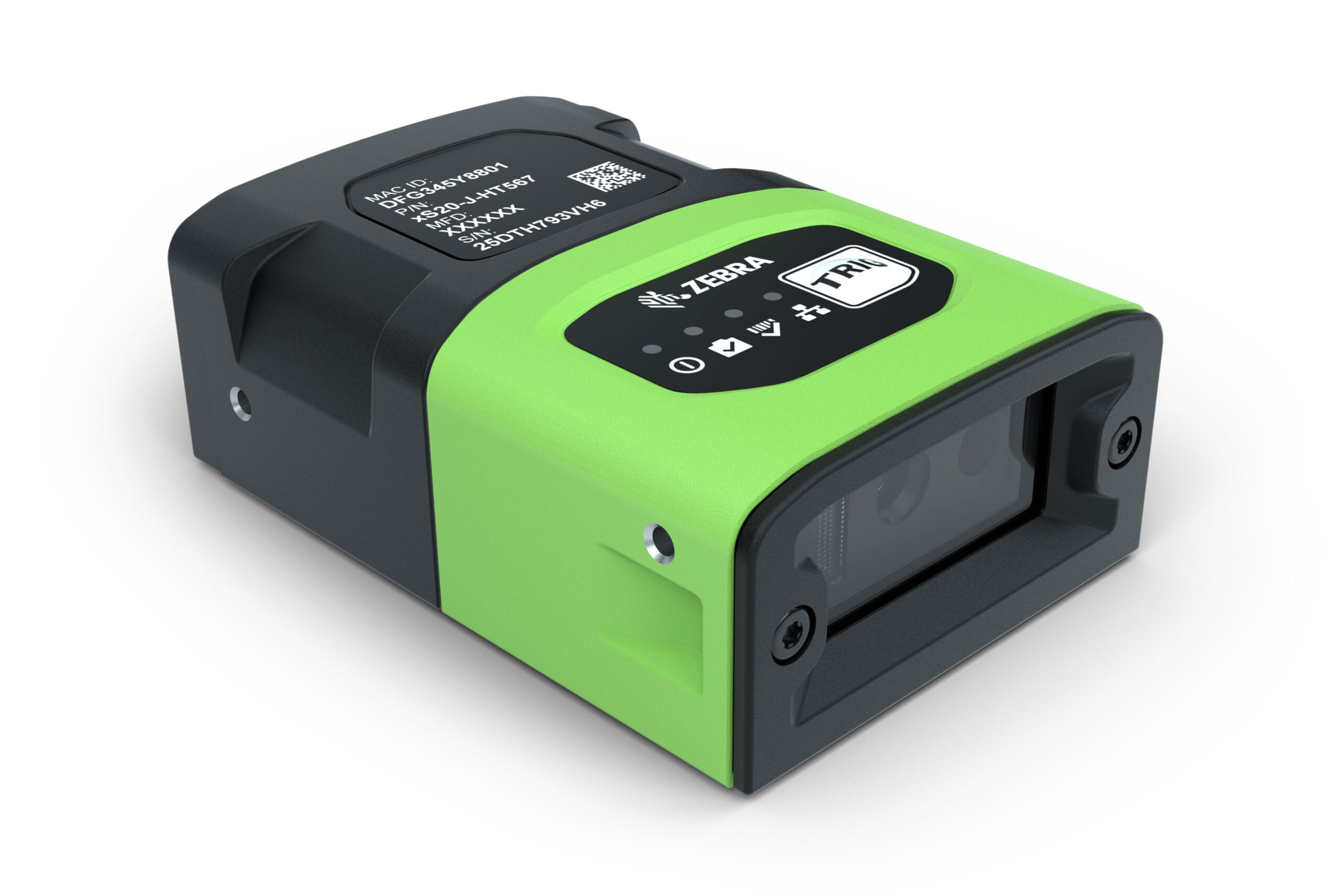

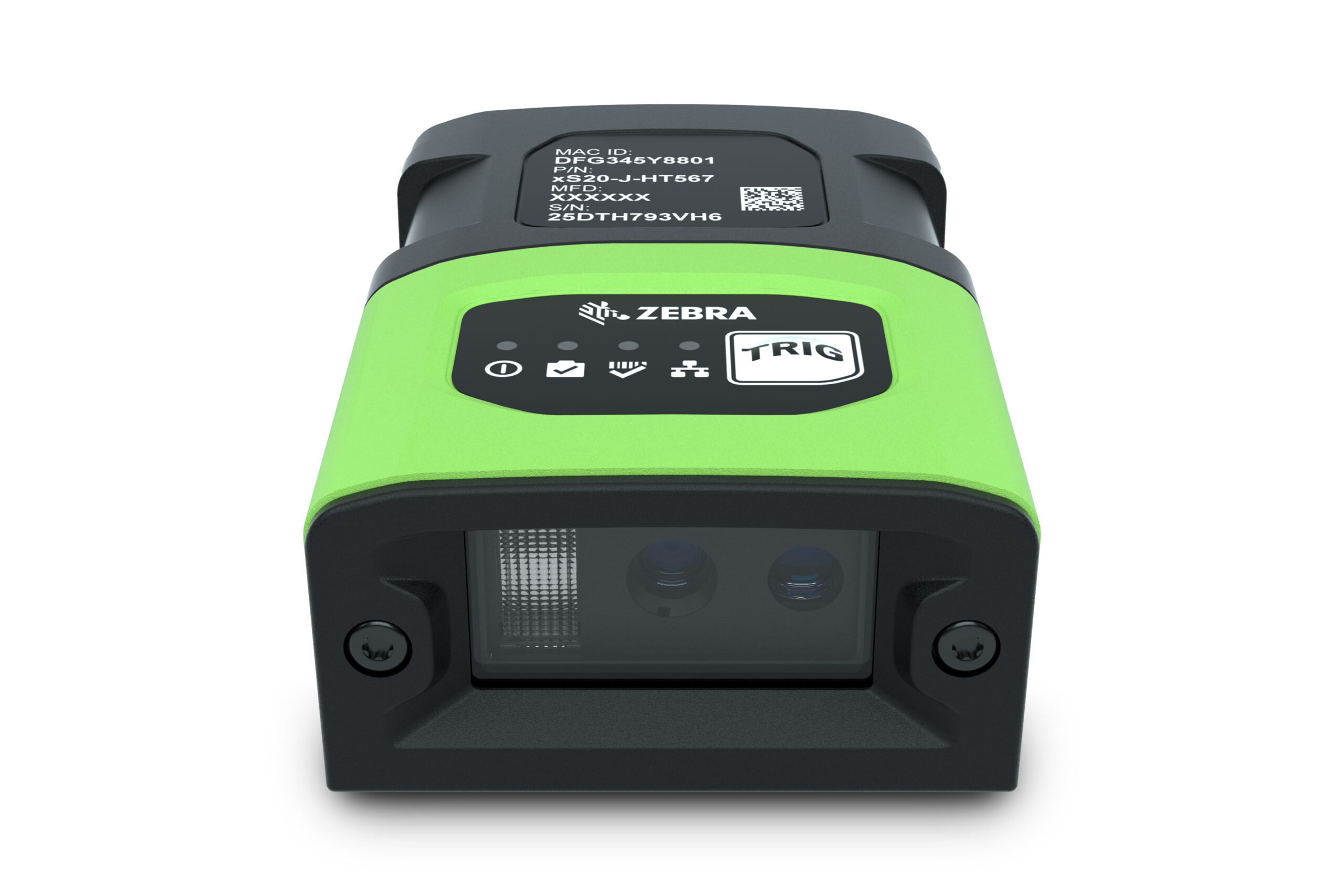

ZEBRA SCANNER FS20 FIXED 2D-SR (RED) ETH/SER

SKU: FS20-SR10Z2-2C00W

ZEBRA FS20 FIXED INDUSTRIAL ETHERNET SCANNER: AUTO FOCUS, STANDARD RANGE, 1.0 MP, STANDARD BARCODE DECODER, ETHERNET, SERIAL AND INDUSTRIAL PROTOCOLS, RED ILLUMINATION – WORLDWIDE

6.1 mm
Two 660 nm red LEDs, Two 2700 K white LEDs
1D: Codabar, Code 39, Code 93, Code 128, I 2 of 5, MSI Plessey,…
One M12 X-Coded 1000/100/10 Mbps Ethernet, One M12 12-pin Power/GPIO/RS-232

ZEBRA FS20 FIXED INDUSTRIAL ETHERNET SCANNER: AUTO FOCUS, STANDARD RANGE, 1.0 MP, STANDARD BARCODE DECODER, ETHERNET, SERIAL AND INDUSTRIAL PROTOCOLS, RED ILLUMINATION – WORLDWIDE

Easily Integrate Plug-and-Play High-Quality Scanning Into Your Network
Empower your enterprise with real-time track-and-trace of every item with the FS20. Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary scanning applications to feed all the processes that drive your business. Zebra’s powerful Aurora software platform provides a highly intuitive and elegant interface that makes the FS20 easy to set up, deploy and run. And you can easily upgrade to new capabilities, future-proofing your investment.

Benefits of the FS20
Integrate Anywhere In Your Network:
Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary scanning applications to feed all the processes that drive your business. Zebra’s powerful Aurora software platform makes the FS20 easy to set up, deploy and run.

Superior Scanner Reliability:
Get a perfect image every time with ImagePerfect, which captures three different images on a single item, each with its own settings. Get fast capture of even damaged 1D or 2D barcodes with PRZM Intelligent Imaging.

Upgrade to a Machine Vision Smart Camera:
Simply purchase a licence to add core machine vision capabilities without having to purchase a new device. Automatically determine the quality of a part or item in a split second, enabling error-proofing, reducing cycle times and increasing productivity.

Click here to download the product Specsheet(PDF)

Focal length

6.1 mm

Illumination

Two 660 nm red LEDs, Two 2700 K white LEDs

Barcode Symbologies

1D: Codabar, Code 39, Code 93, Code 128, I 2 of 5, MSI Plessey, UPC/EAN
2D: Aztec, Data Matrix, DotCode, MaxiCode, PDF417, Micro PDF417, QR Code, Micro QR
OCR: Deep learning-based OCR via an add-on license. Supports latin letters (A-Z, a-z, digits or many special characters).

Ports

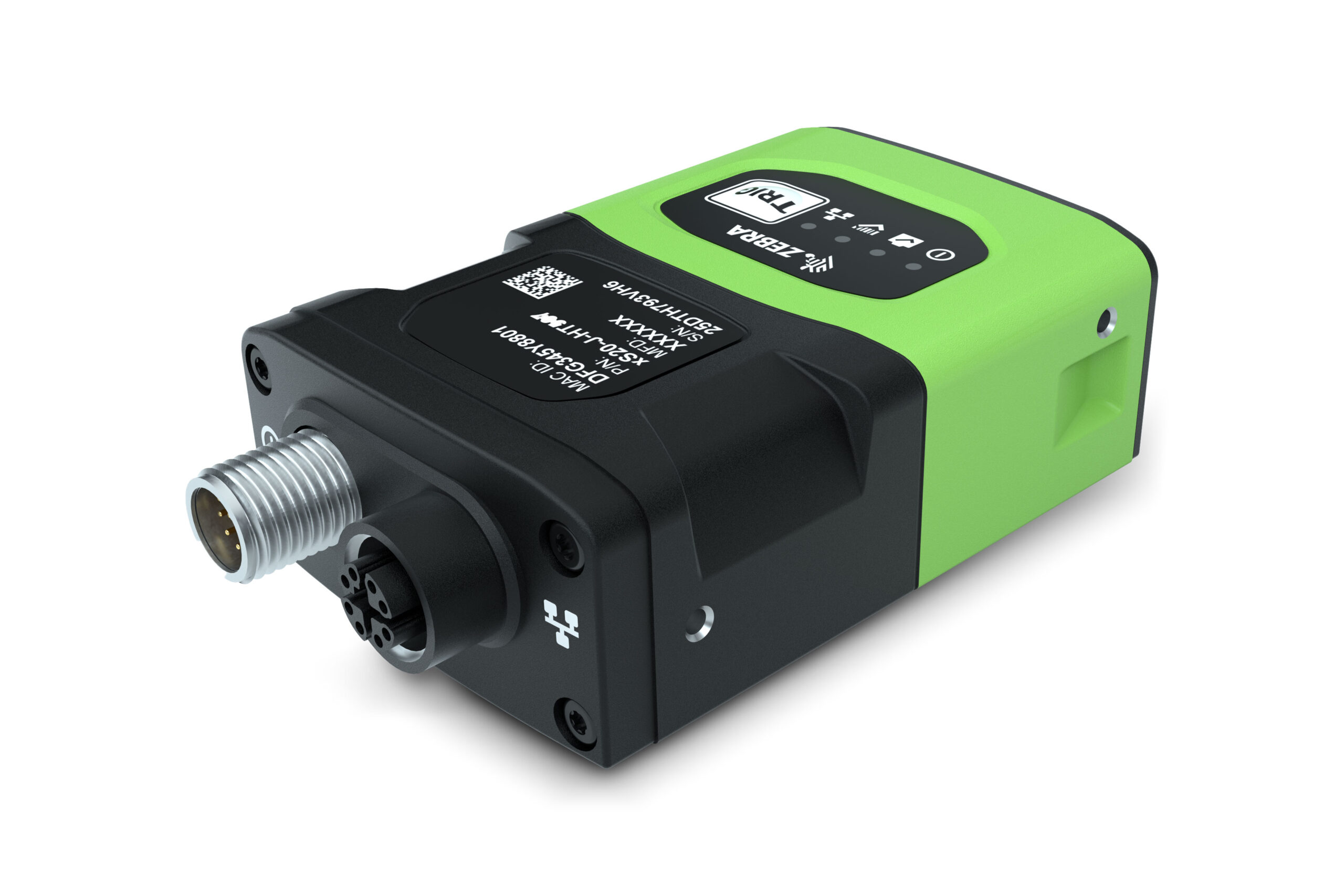

One M12 X-Coded 1000/100/10 Mbps Ethernet, One M12 12-pin Power/GPIO/RS-232
