Ultra-thin On-Metal RFID Label Impinj® M830 | 70×30mm
Ultra-thin On-Metal RFID Label Impinj® M830 | 70×30mm - Image 2

Ultra-thin On-Metal RFID Label Impinj® M830 | 70×30mm

SKU: DS-AZL-M830-OMPET-7030
Price range: $759.00 through $1,261.00

NXP UCODE® 9, Rectangle Label, UHF 860-960 MHz Tags: ISO 18000-6C, ISO/IEC 18000-6C, NXP UCODE®, NXP UCODE® 9, NXP UCODE® 9 series, RFID label

Material: PET & Aluminum Foil & Foam Label Size: 70×30×0.4 mm
Operating Frequency: 902~928 MHz (US), 865-868 MHz(EU) Communication Protocol: ISO/IEC 18000-6C, EPCglobal Gen2v2 Operating…
Chip Manufacturer: Impinj® Chip Type: Impinj® M830 Data Retention: 10 years EPC Memory: 128…
Operating Environment: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C,…

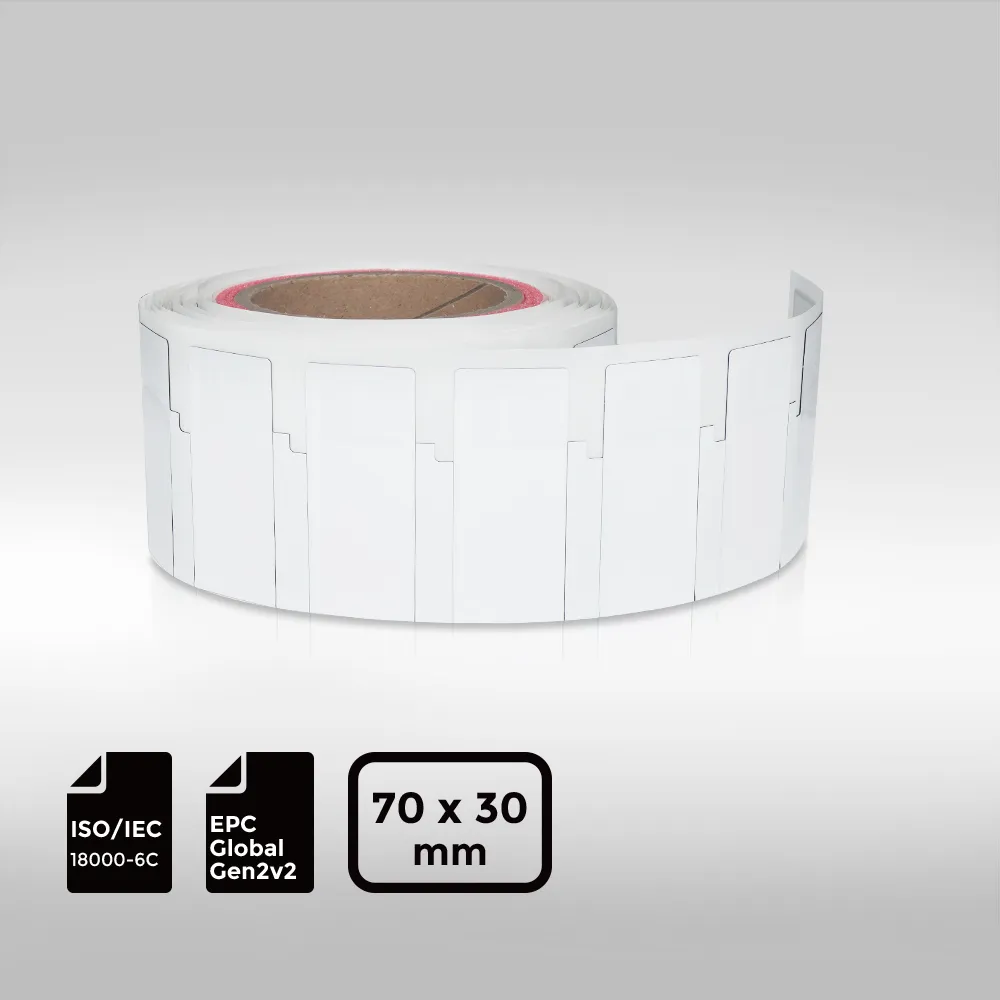

Ultra-thin On-Metal RFID Label Impinj® M830 | 70×30mm

This label features an ultra-thin flexible design with a thickness of only 0.4mm, making it suitable for application on irregular metal surfaces or curved surfaces. It supports personalized customization services such as printing, encoding, and labeling, and is widely used in metal containers, fixed asset management, IT asset management, warehouse management, and other fields.

Features:

Frequency Band: UHF 902~928 MHz (US)

Chip Type: Impinj® M830

International Standard: ISO/IEC 18000-6C, EPCglobal Gen2v2

EPC Memory: 128 bits

Read Range: :Up to 4.5 m (on-metal, FCC)

IP Rating: IP68; test for 5 hours at 1 meter deep water

Click here to download the product Specsheet(PDF)

Physical Specifications

Material: PET & Aluminum Foil & Foam
Label Size: 70×30×0.4 mm
Technical Parameters

Operating Frequency: 902~928 MHz (US), 865-868 MHz(EU)
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Operating mode: Passive
Read Range: Up to 4.5 m (On-metal, FCC)
IP Rating: IP68
Supported Printers: Sato CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc.
Customization Options: Print logo, barcode/QR code, serial number, encoding, design, etc.
Chip Characteristics

Chip Manufacturer: Impinj®
Chip Type: Impinj® M830
Data Retention: 10 years
EPC Memory: 128 bits
TID Memory: 96 bits
Read Sensitivity: -25.5 dBm
Write Sensitivity: -20 dBm
Write Endurance: 10,000 times
Impinj FastID™: Support rapid EPC+TID inventory and EPC+TID validation(Gen2 only)
Impinj Protected Mode™: Reversible kill mode with PIN protection, inhibits fraudulent product returns
Impinj Self-Serialization: Generating unique SGTIN serialization directly from a tag chip’s TID
Additional Information

Operating Environment:
-20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.

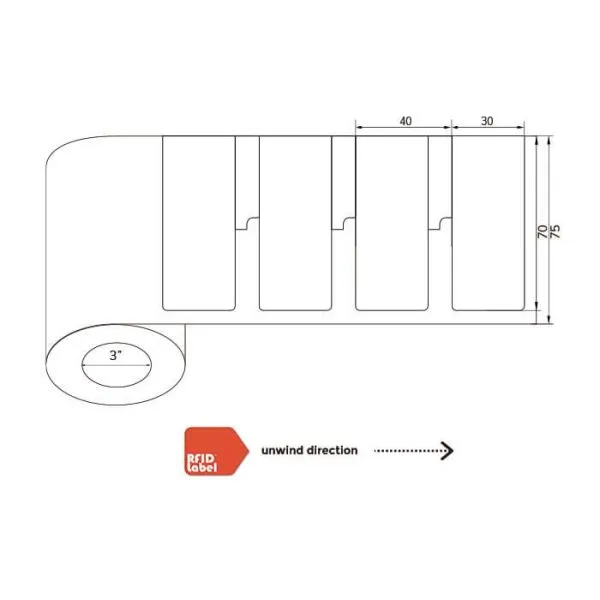

Packaging

Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 220 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 500 Pcs/roll
