UHF-Tamper-Detection-Jewelry-Label-Waterproof-PET-UCODEG2iL

Waterproof PET UHF Tamper Detection RFID Jewelry Label | 84×15mm

Name: Waterproof PET UHF Tamper Detection RFID Jewelry Label | 84×15mm
SKU: DS-AZL-G2iLP-TDPET-8415
Availability: BackOrder

SKU: DS-AZL-G2iLP-TDPET-8415

NXP UCODE®G2iL+, Long Stripe Label, Rectangle Label, Tamper Evident RFID label, UHF 860-960 MHz Tags: ISO/IEC 18000-6C, NXP UCODE®G2iL+, UHF 860-960 MHz

5000 | 10000

Material: Waterproof PET Label Size: 84×15 mm Antenna Size: 51.2×12.3 mm

Operating Frequency: 860~960MHz Communication Protocol: ISO/IEC 18000-6C, EPC Class1 Gen2 Operating mode: Passive

Chip Manufacturer: NXP® Chip Type: UCODE® G2iL+ Data Retention: 20 years EPC Memory: 128…

Qty

Clear

UCODE® G2iL+ Waterproof PET UHF Tamper Detection RFID Jewelry Label | 84×15mm

The 84×15mm RFID UHF Jewelry Label integrates the NXP UCODE® G2iL+ chip with tamper detection functionality, offering reliable performance for high-value item tracking and theft deterrence. With fast read rates, long read range, and support for EPCglobal v1.2.0 standards, it ensures secure and efficient inventory management across jewelry retail and luxury goods sectors.

Designed with a tamper-evident structure, the label disables the RFID function when removed or broken—adding a layer of protection against unauthorized replacement or misuse. Its slim profile fits seamlessly around small items like rings, necklaces, and watches, enabling discreet, secure, and elegant tagging.

Features:

Frequency Band: UHF 860~960 MHz

Chip Type: NXP UCODE® G2iL+

International Standard: ISO/IEC 18000-6C, EPC Class1 Gen2

EPC Memory: 128 bits

TID Memory: 64 Bits

Read Range: ≥ 1.5 m (Fixed readers)

Click here to download the product Specsheet(PDF)

Qty	5000, 10000
Physical Specifications	Material: Waterproof PET Label Size: 84×15 mm Antenna Size: 51.2×12.3 mm
Technical Parameters	Operating Frequency: 860~960MHz Communication Protocol: ISO/IEC 18000-6C, EPC Class1 Gen2 Operating mode: Passive
Chip Characteristics	Chip Manufacturer: NXP® Chip Type: UCODE® G2iL+ Data Retention: 20 years EPC Memory: 128 bits TID Memory: 64 bits Kill/Access Password: 32 bits Integrated Product Status Flag(PSF): Support Write Endurance: 100,00 times READ Protection: Support Write Lock: Support Tag Tamper Alarm: Support Anti-Collision Function: Support Digital Switch: Support Data Transfer Mode: Support Real Read Range Reduction(Privacy Mode): Support READ&WRITE Range: -27 dBm (External supply mode)
Additional Information	Operating Environment: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.

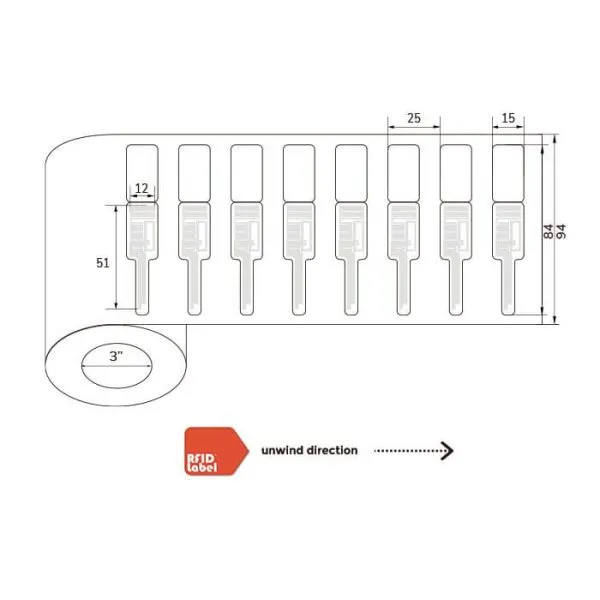

Packaging	Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 210 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 Pcs/roll
